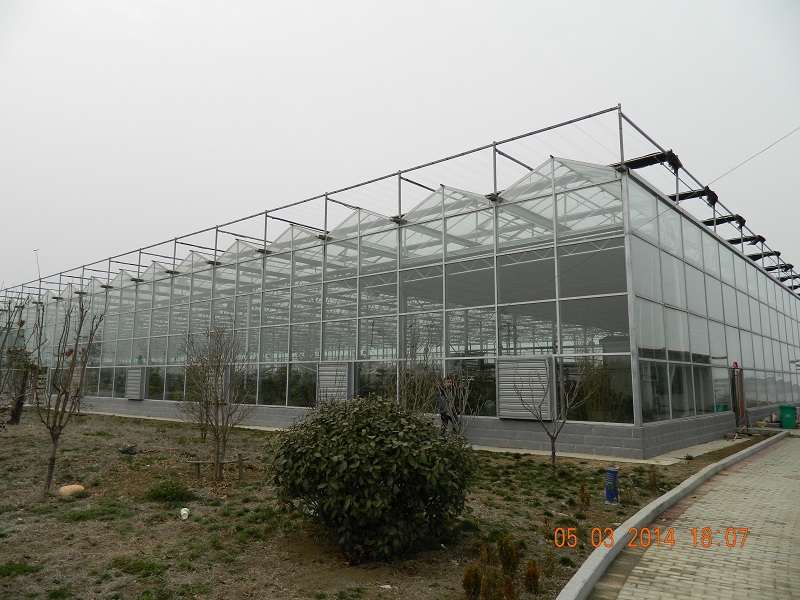

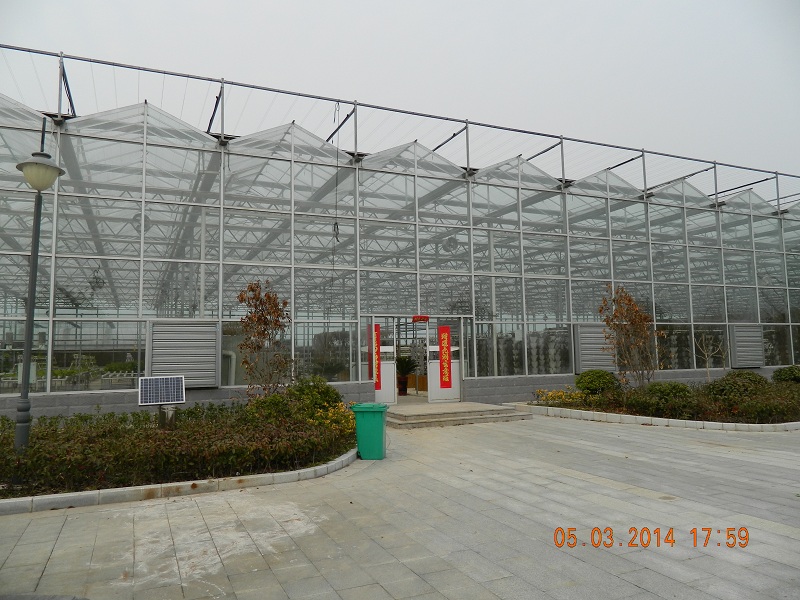

The project is a small modern Venlo ridge greenhouse used in the horticultural dem**tration garden of Fuyang Vocational Technical College.

The greenhouse is divided into the east area and west area, with a 4-meter-span channel in the middle.

The greenhouse in the west area has 3 spans *12 meters/span * 12 design rooms* s 4 meters/room, covering an area of 1,728 square meters; the greenhouse in the east area has 3 spans*12 meters/span *12 design rooms 4 meters/room, covering an area of 1,728 square meters; the aisle is 4 meters* 52 meters, covering an area of 208 square meters; So, the greenhouse has a total area of 3,664 square meters.

2. Greenhouse design rooms: 4.00 m (12 design rooms in total with side wall 48.00 m long)

3. Greenhouse eave height: 5.00 m

4. Greenhouse ridge height: 5.80 m

5. External sunshade height: 6.50 m

6. Wind load: ≥0.5 KN/m2

7. Snow load: ≥0.45 KN/m2

8. Hanging load: ≥0.15 KN /m2

9. Maximum rain discharge: ≥140 mm/h

10. Seismic grade: ≥seismic intensity 8

11. Power supply parameters: 220V/380V, 50Hz, three-phase

12. Normal service life period: 20 years

13. Fireproofing grade: V
